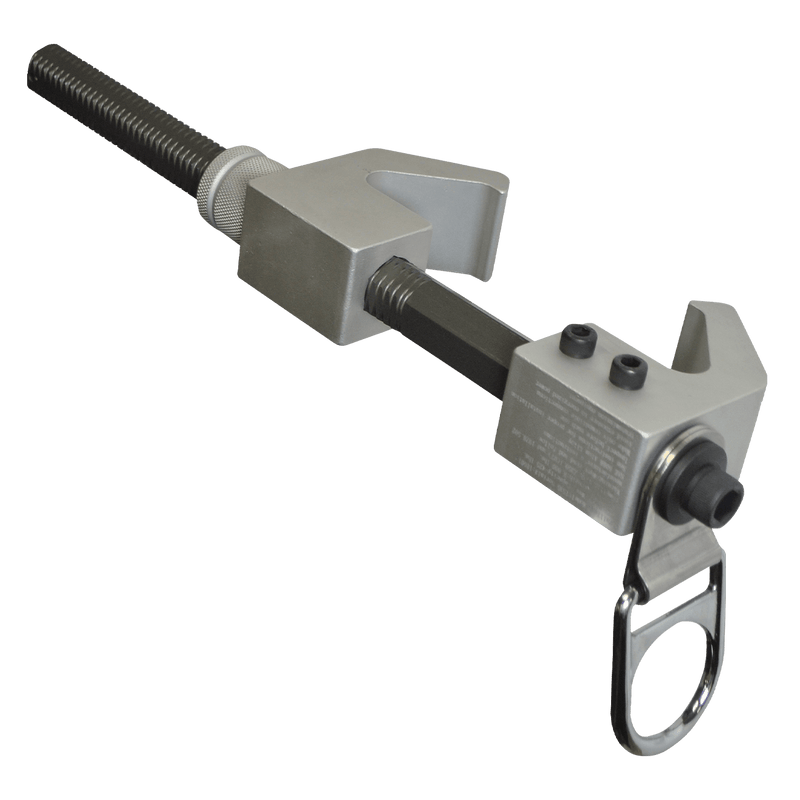

Introducing the 12 ¾" Vertical Beam Anchor for Fixed Locations, an ideal solution for permanent installation on vertical and horizontal I-beams. This anchor is specifically designed to provide a secure point for fall protection in fixed locations.
It features a threaded aluminum crossbar and jaws with knurled rings, allowing for precise adjustment to fit flanges from 3-3/4" to 12-3/4" wide and up to 2-1/4" thick. This adaptability makes it suitable for a variety of beam sizes, ensuring a secure fit and maximum safety.
The anchor is made from high-quality materials, including a plated alloy steel D-ring with a minimum static strength of 5,000 lb and aluminum alloy crossbar and clamp jaws. This construction offers durability and reliability, meeting the compliance standards of ANSI Z359.18-2017.
For full details on the use and installation of this anchor, please refer to the Instruction Manual. Additionally, the product's Declaration of Conformity is available for further information on standards and specifications.
